RPS R-EMU5000-0125-MR25

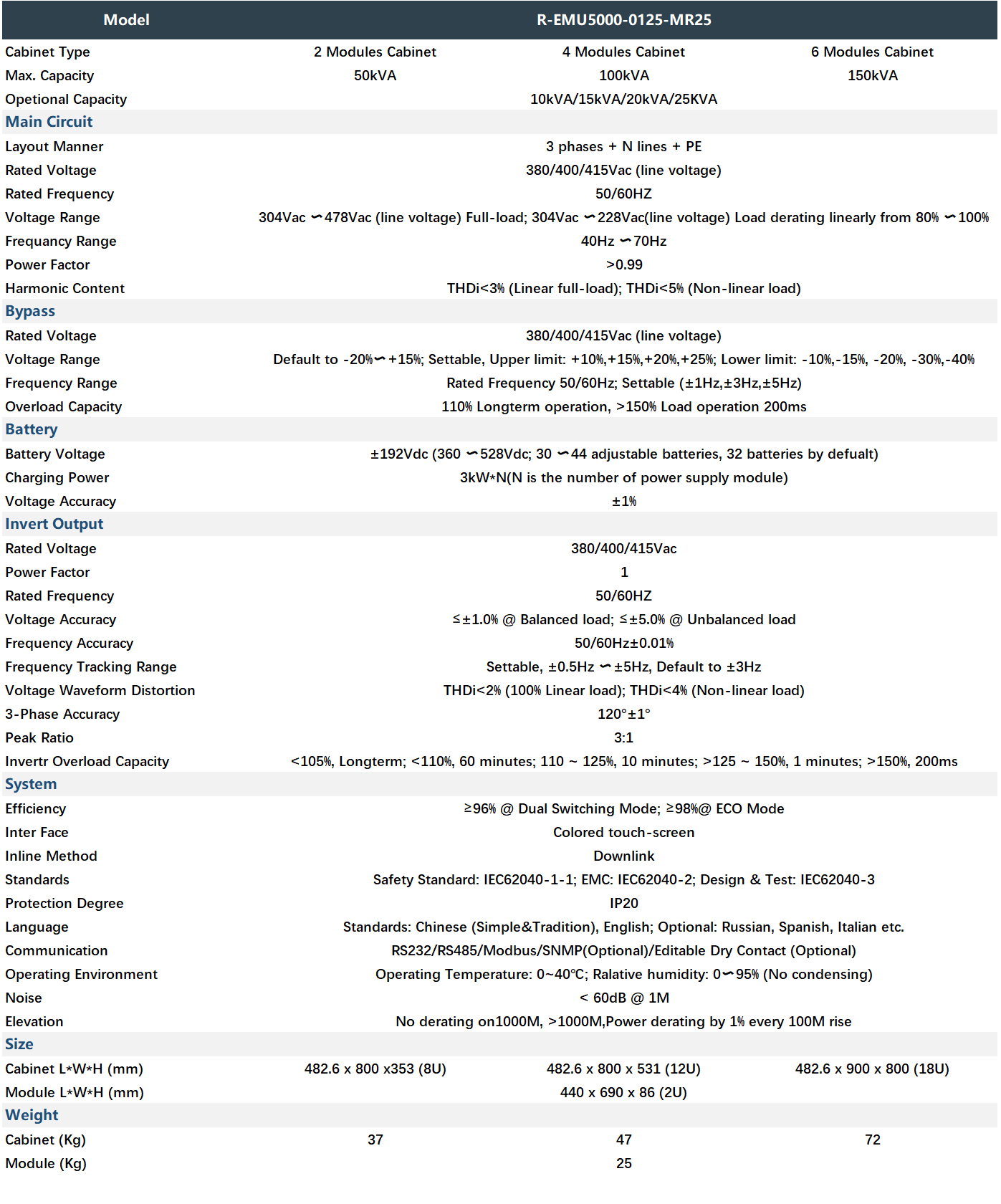

Item specifics

Optional Capacity
Layout Manner
3 phases + N lines + PE
≥96% @ Dual Switching Mode; ≥98%@ ECO Mode
Module L*W*H (mm)
440 x 690 x 86 (2U)
Module (Kg)



RPS R-EMU5000-0125-MR25 | Lithium UPS Battery System | UPS
RENON RPS series product is a high-voltage lithium iron phosphate battery storage system independently Internal development by Renon Technology (Shenzhen) Co. Ltd. The rated voltage of the system is ±256Vdc or 512V, and the maximum which meets the requirement of a 20kW power supply. The parallel of varied systems is supported.

RENON RPS series has a built-in BMS battery management system, which can manage and monitor cells information including voltage, current, and temperature. What's more, BMS can help to extend cycle life by balancing cells during charging and discharging.

Multiple batteries are connected in series to expand capacity and power to meet longer power support time and higher power consumption requirements.
The whole module is non-toxic, non-polluting, and environmentally friendly;
The cathode material is made from LiFePO4 with safety performance and long cycle life;
Battery management system (BMS) has protection functions including over-discharge, over-charge, and over-current and high/low temperature;
The system can automatically manage charge and discharge state and balance current and voltage of each cell;
Flexible configuration, multiple battery modules can be internal for expanding voltage and Capacity;
Adopted self-cooling mode rapidly reduced system entire noise;
The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, excellent performance of shallow charge and discharge;
Working temperature range is from -10 to 55℃, (Charging 0~45℃; discharging -10~55℃ ) with excellent discharge performance and cycle life;
Small size and light weight, the standard of 19-inch embedded designed module is easy for installation and maintenance.

Performance Characteristics:

Intelligent and Convenient
High power density, the industry’s first 25kVA power module adopts 2U design;
The friendly man-machine interface is equipped with a touch screen, which can display in Chinese and English;
Adjustable quantity of battery cells and the parallel shared battery pack is supported to realize on-site demand configuration and flexible investment;
Rack-mounted design, suitable for standard 19-inch cabinet; Integrated with the power distribution cabinet, the power can reach 150kVA without additional floor area;
Aplenty communication interfaces, supports remote network management scheme;
The charging module can be selected to further improve the charging capacity.

Green Technology
The output power factor is 1.0, which can carry 10% more load than ordinary UPS;
The electronic load function reduces the energy consumption in the field and the aging process;
Intelligent module dormancy mode to ensure energy saving in the full load range;
ECO mode ensures the highest efficiency in a stable power grid.

Green Energy-Saving
High-performance intelligent speed regulation fan, with sufficient volume, two faulty fans still support half-load operation;
Adopting a unique air duct design to completely isolate the core components (such as power semiconductor and control system) from the air duct, so as to improve the adaptability of UPS to harsh environment;
ECO emergency shutdown button is configured on the panel;
Supports battery cooling start-up, which is convenient for users to directly start the battery pack without a power supply;
Without master-slave design in parallel operation; Patented DC control current equilibrium technology.
Adopt high safety, long life, excellent performance LiFePO4 prismatic cells
With a designed service life of 10 years, capable of providing and powering in full power.
High energy density - More capacity with less weight and volume.
High charge and discharge currents - Fast charge and discharges are possible.
Intelligent BMS to ensure a safe reliable operation;
Built-in self-developed smart BMS, which ensures the ability to conduct adjustments.
