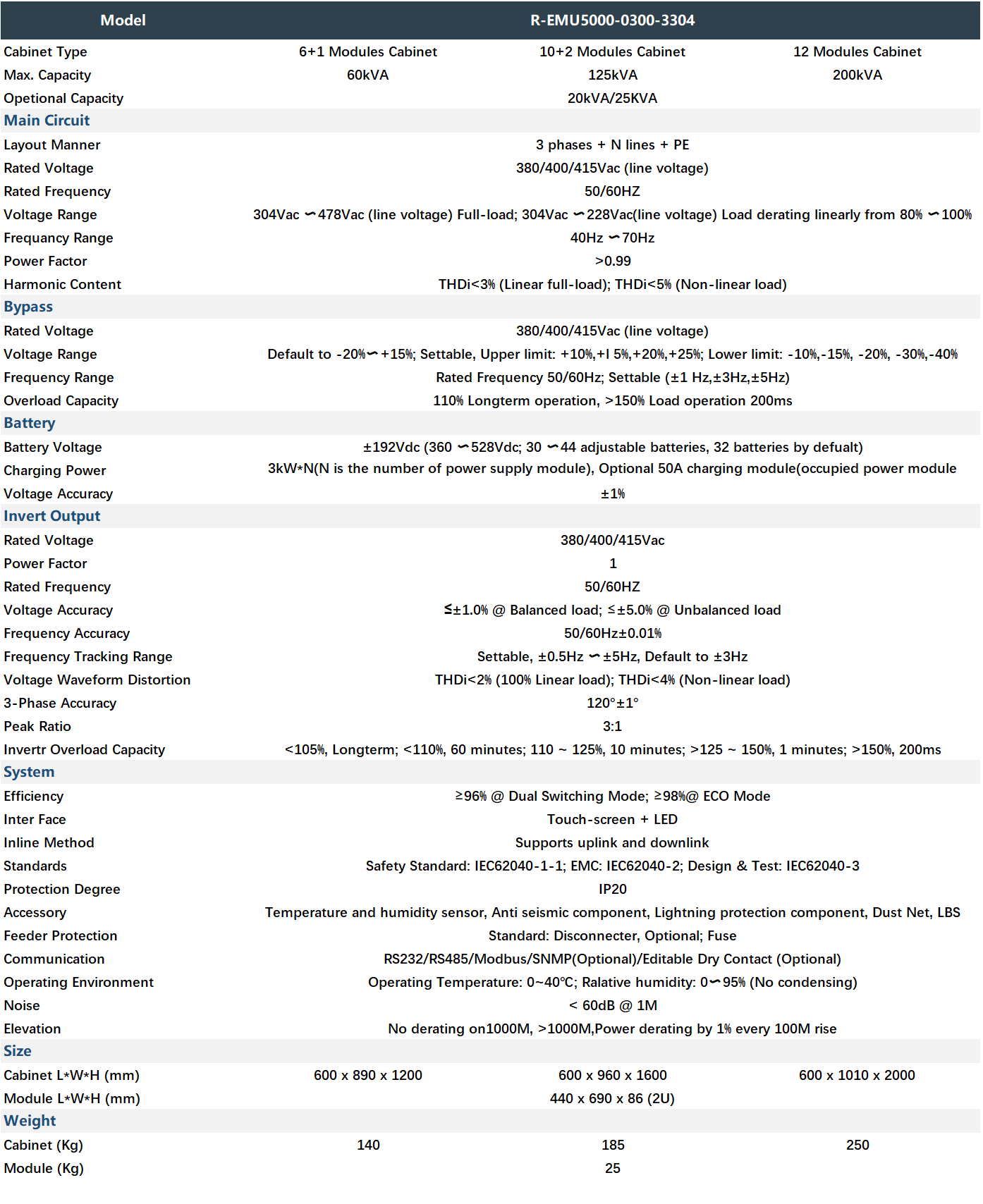

- Optional Capacity
- Layout Manner
- 3 phases + N lines + PE
- ≥96% @ Dual Switching Model
- < 60dB @ 1M
- Module L*W*H (mm)
- 440 x 720 x 130 (3U)
- Module (Kg)

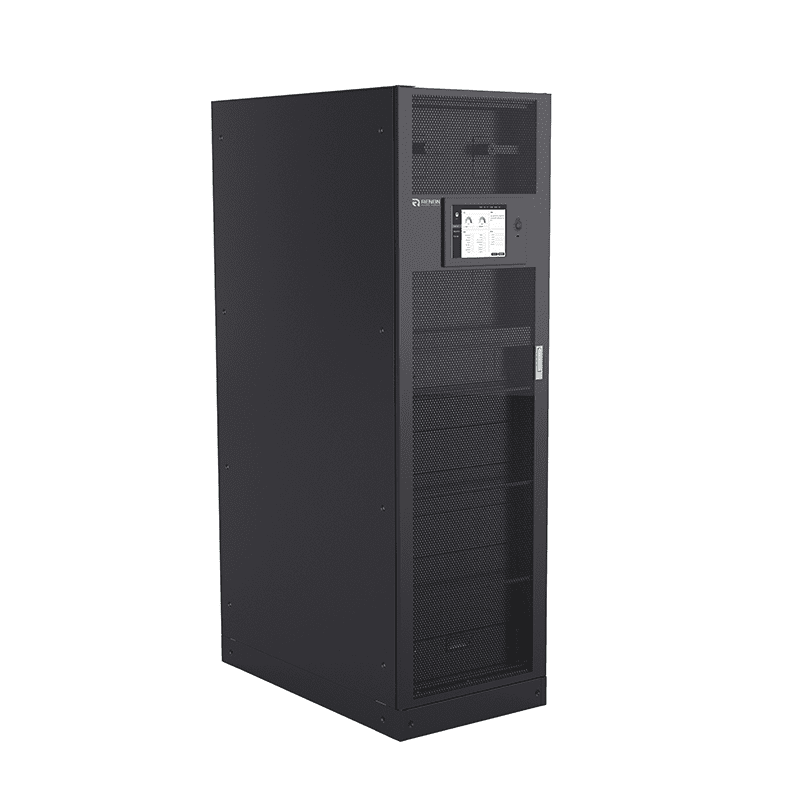

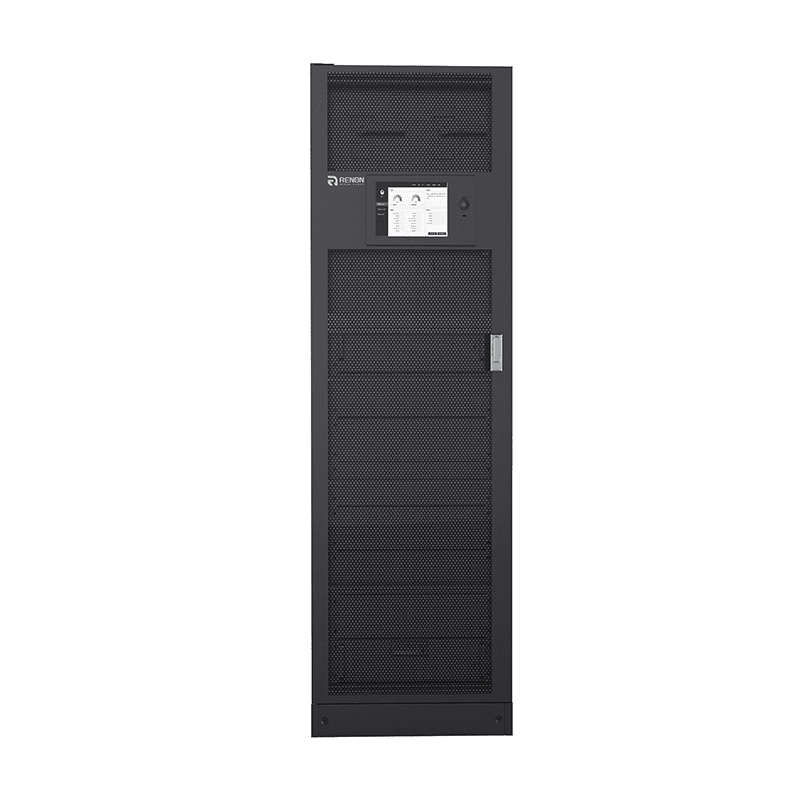

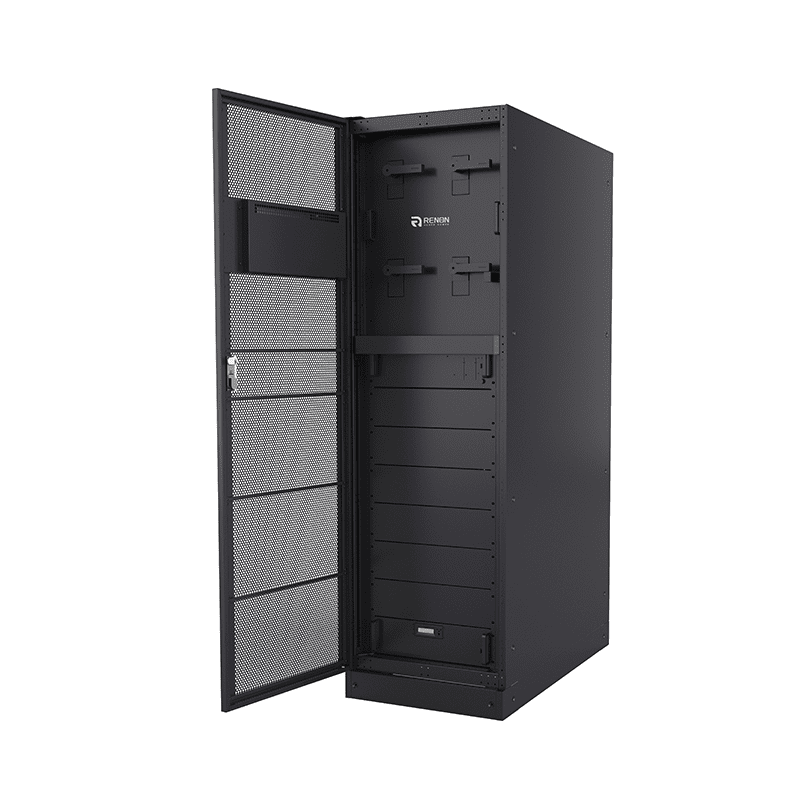

RPS R-EMU5000-0300-3304 | Lithium UPS Battery System | RENON
The RENON R-EMU5000-0300-3304 is a product designed for the new generation of smart data centers. It is suitable for power supply application scenarios such as distributed computer rooms, computer rooms with limited load-bearing, phased deployment of computer rooms, rapid deployment of computer rooms, and integrated cabinets.
The RPS series distributed power system uses less space, fewer power components, better reliability, and better power quality. It can be placed in a standard 19-inch rack and only occupies 4U/6U space. And battery capacity can be flexibly configured, suitable for high-density cabinet deployment.
The RPS series of distributed power supply products are AC online products, which provide 220V AC power supply for IT equipment and can provide two AC power supplies for the cabinet at the same time.
Efficient and Intelligent
The industry's first 25kVA power module adopts 2U design, 12 modules can be set in a 2-meter cabinet, saving floor area;
The friendly man-machine interface is equipped with an oversize touch screen, which can display in Chinese and English;
Adjustable quantity of battery cells and the parallel shared battery pack is supported to realize on-site demand configuration and flexible investment;
ECO emergency shutdown button is configured on the panel.
The input power factor is as high as 0.99 or more; the input harmonics are less than 3%, and the efficiency of the whole machine is as high as 96%, realizing real green energy saving;
The 2-meter high rack can be expanded to 12 power modules, and the system capacity reach 300kVA, the floor area is greatly saved;
The electronic load function reduces the energy consumption in the field and the aging process;
Intelligent module dormancy mode to ensure energy saving in the full load range;
ECO mode ensures the highest efficiency in a stable power grid.
Stable and Reliable
Adopting a unique air duct design to completely isolate the core components (such as power semiconductor and control system) from the air duct, so as to improve the adaptability of UPS to harsh environment;
Perfect power distribution scheme, standard spec includes manual maintenance switch, optional for input switch, output switch, and bypass switch;
Supports battery cooling start-up, which is convenient for users to directly start the battery pack without a power supply;
Optional accessories included B grade (40kA), C grade (20kA), D grade (10kA), and other lightning protection components.
Fast, flexible, distributed, and modular deployment
Compatible with T2/T3/T4 level in the same data center.
Effective use of space and load-bearing
The weight of the equipment is equivalent to that of the server, and the load-bearing capacity is only 500kg/square meter.
Energy saving and emission reduction, cabinet-level energy management effectively combines cloud computing.
High-efficiency power supply module, the efficiency of the whole series of products is as high as 94% or more.
