Application and Technical Points of Lithium-ion Batteries in Energy Storage Scenarios

Application and Technical Points of Lithium-ion Batteries in Energy Storage Scenarios


Lithium batteries are widely used in energy storage systems due to their high energy density and long cycle life. The following articles describe in detail the application and technical points of lithium-ion batteries in energy storage scenarios.

The development of the new energy industry makes the value of energy storage gradually appear. The data shows that in 2018, the cumulative installed capacity of chemical energy storage in the world increased by 66.3% year on year, reaching 4868MW. Among them, China's newly installed capacity reached 629MW, a year-on-year increase of 420%.

Lithium-ion batteries account for 75% of chemical energy storage

As the main growth point of electrochemical energy storage, lithium batteries account for 75% of the scale of chemical energy storage. In the long run, the energy storage field will be one of the important application markets for lithium batteries.

Lithium-ion batteries refer to accumulators made of lithium-containing compounds, which mainly rely on the movement of lithium ions between the positive and negative electrodes to work. In the process of charging and discharging, there are only lithium ions, but there is no metal lithium. Compared with other batteries, lithium batteries have the advantages of high energy density, long cycle life, low self-discharge rate, high energy conversion rate, and rapid charge and discharge.

In the energy storage system, the functions of lithium batteries, lead-carbon batteries, and lead-acid batteries are to store electrical energy. The biggest difference between lithium batteries and lead-acid batteries is that lithium batteries must be equipped with a battery management system. At present, domestic lithium battery technologies mainly include lithium iron phosphate, lithium titanate, ternary lithium, and other mainstream routes. The power density of these batteries is much higher than that of lead-carbon batteries.

Application of lithium-ion batteries in energy storage scenarios

Energy storage is one of the important means to solve the intermittent volatility of new energy wind power and photovoltaics and realize the function of "shaving peaks and flat valleys". As an emerging application scenario, energy storage lithium batteries have gradually attracted attention.

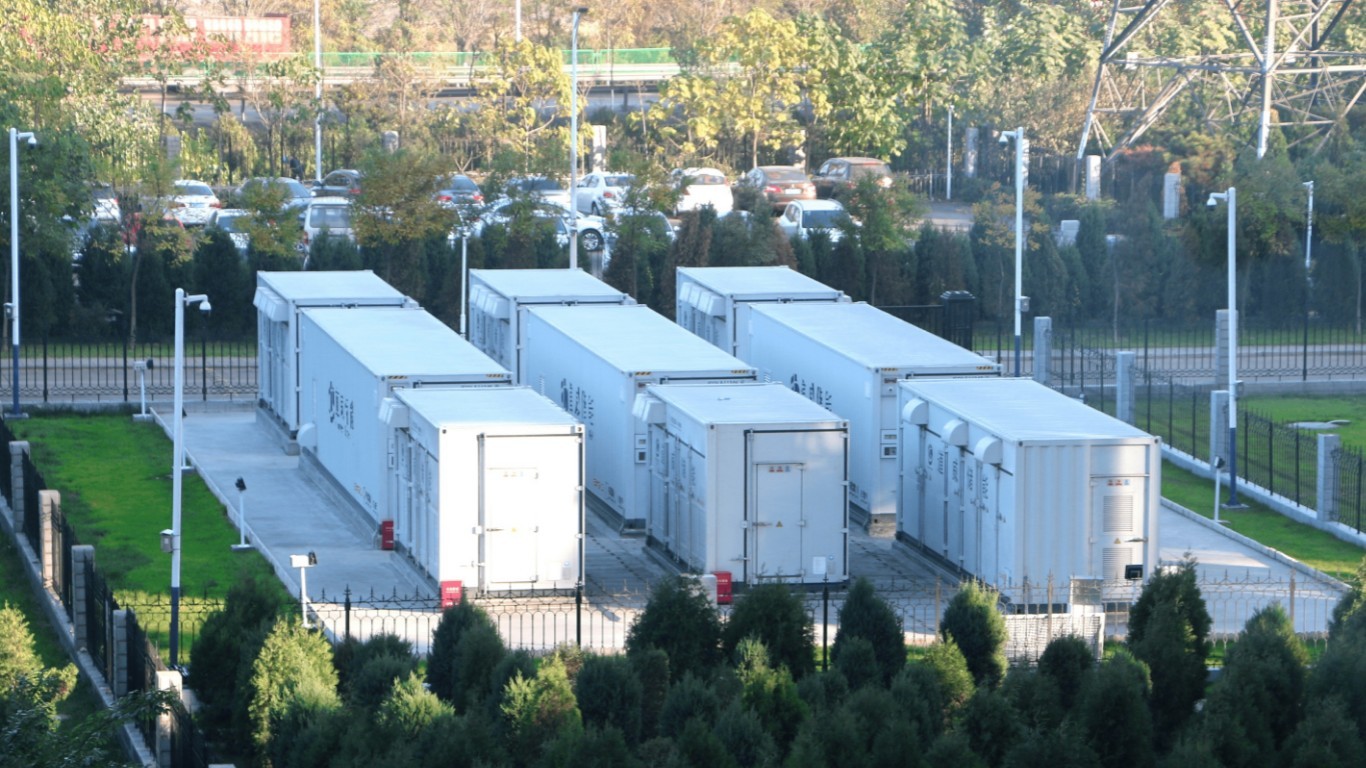

It is understood that the application scenarios of lithium batteries on the power supply side, user side, and grid side of energy storage are as follows: the energy storage applications on the power generation side include solar energy storage power stations, wind storage power stations, and AGC frequency modulation power stations; the user side energy storage focuses on solar energy storage. Storage and charging stations, household energy storage, backup power supply, etc.; grid energy storage is used in substation energy storage, virtual power plants, peak regulation/frequency regulation, and other scenarios.

Energy storage lithium batteries have no direct requirements for energy density, but different energy storage scenarios have different requirements for the power density of energy storage lithium batteries. Lithium-ion batteries used in the field of electric energy storage require batteries with safety, long life, and high energy conversion efficiency. The cycle times and life are generally required to be greater than 3500 times.

Chen Yongchong, head of the energy storage technology research group of the Institute of Electrical Engineering, Chinese Academy of Sciences, once pointed out that for power peak shaving, off-grid photovoltaic energy storage, or user-side peak-valley price difference energy storage scenarios, it is generally necessary to continuously charge or discharge the energy storage battery for more than two hours. , so it is suitable to use a capacity battery with a charge-discharge rate of ≤0.5C; for power frequency regulation or smooth renewable energy fluctuations in energy storage scenarios, the energy storage battery needs to be quickly charged and discharged in a time period of seconds to minutes, suitable for ≥2C power It is more suitable for energy-type batteries because it needs to undertake the application scenarios of frequency modulation and peak regulation at the same time.

Different from the field of new energy vehicles, the demand for lithium batteries in the energy storage market requires low cost and long life in addition to safety. Renon specializes in the production of safe and reliable lithium battery energy storage systems. If you want to buy lithium battery energy storage systems, please contact us.
